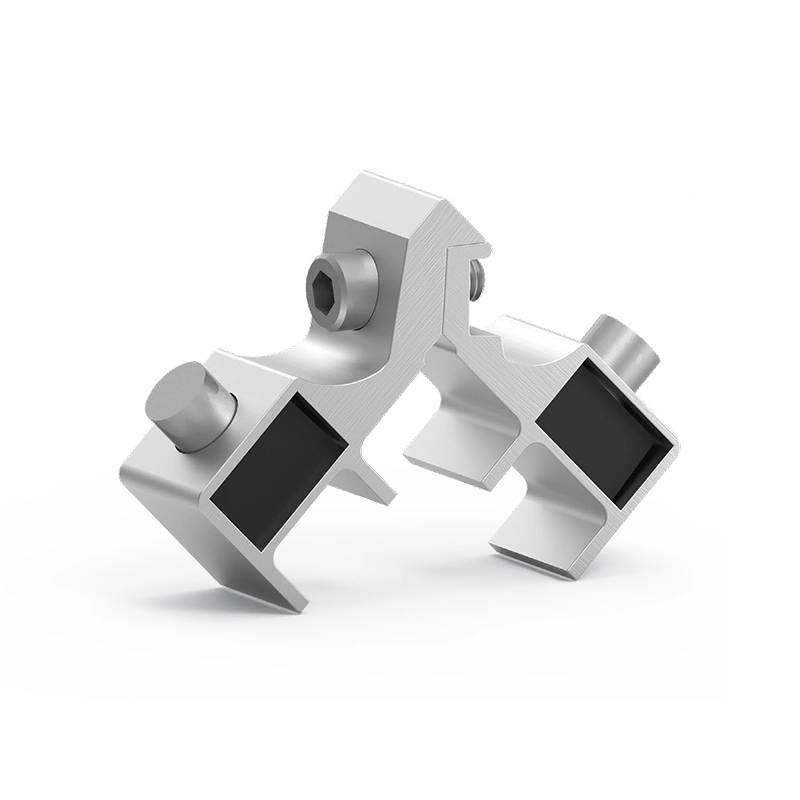

Screw‑Fixed Extruded Aluminium Corner Joint with Plastic Button (L×22.3)

Screw‑Fixed Extruded Aluminium Corner Joint with Plastic Button (L×22.3)

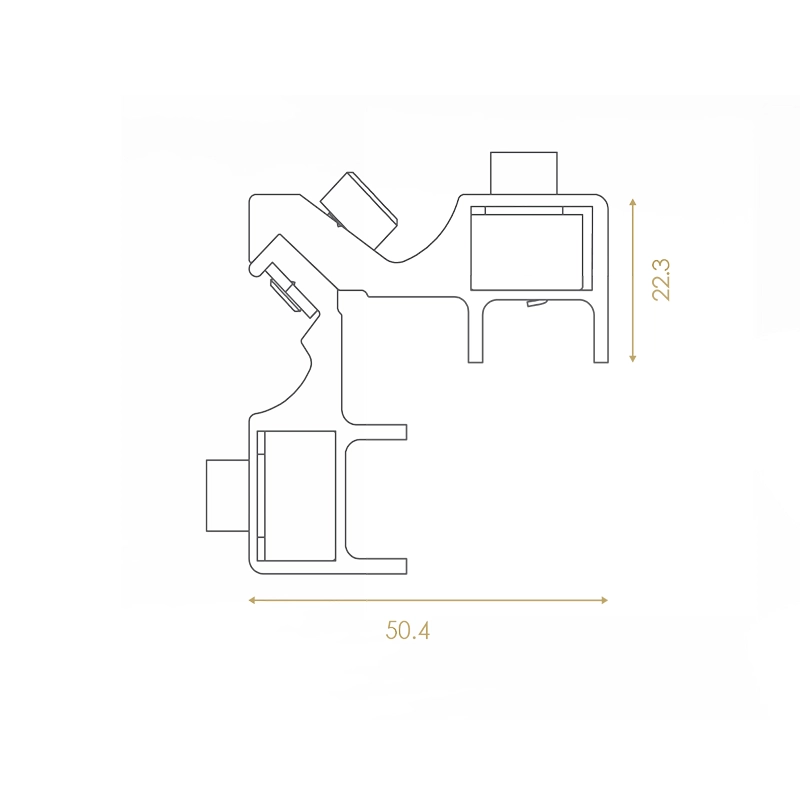

Aluminum under‑plastic button fixer (L×22.3) is a reinforcing fixing element with a constant width of 22.3 mm and a variable cut length (L). Used together with a plastic corner button, it enhances the strength and alignment accuracy of aluminum door and window corner joints. This fixer offers fast and cost‑effective installation, though with lower strength compared to punch‑type systems. Available cut lengths and orientations can be selected in the technical specifications.

Available Variants

Screw‑Fixed Extruded Aluminium Corner Joint with Plastic Button (L×22.3) (3140015)

Cut Length: 19 Side: middle

Screw‑Fixed Extruded Aluminium Corner Joint with Plastic Button (L×22.3) (3140222)

Cut Length: 22 Side: middle

Screw‑Fixed Extruded Aluminium Corner Joint with Plastic Button (L×22.3) (3140223)

Cut Length: 24.8 Side: middle

Screw‑Fixed Extruded Aluminium Corner Joint with Plastic Button (L×22.3) (3140146)

Cut Length: 26 Side: Right

Screw‑Fixed Extruded Aluminium Corner Joint with Plastic Button (L×22.3) (3140165)

Cut Length: 26 Side: middle

Screw‑Fixed Extruded Aluminium Corner Joint with Plastic Button (L×22.3) (3140145)

Cut Length: 26 Side: Left

Screw‑Fixed Extruded Aluminium Corner Joint with Plastic Button (L×22.3) (3140228)

Cut Length: 26.8 Side: middle

Screw‑Fixed Extruded Aluminium Corner Joint with Plastic Button (L×22.3) (3140229)

Cut Length: 27.2 Side: middle

Screw‑Fixed Extruded Aluminium Corner Joint with Plastic Button (L×22.3) (3140191)

Cut Length: 29.2 Side: middle

Screw‑Fixed Extruded Aluminium Corner Joint with Plastic Button (L×22.3) (3140234)

Cut Length: 35.5 Side: Right

Screw‑Fixed Extruded Aluminium Corner Joint with Plastic Button (L×22.3) (3140232)

Cut Length: 35.5 Side: middle

Screw‑Fixed Extruded Aluminium Corner Joint with Plastic Button (L×22.3) (3140233)

Cut Length: 35.5 Side: Left

Screw‑Fixed Extruded Aluminium Corner Joint with Plastic Button (L×22.3) (3140230)

Cut Length: 41.4 Side: Right

Screw‑Fixed Extruded Aluminium Corner Joint with Plastic Button (L×22.3) (3140231)

Cut Length: 41.4 Side: Left

Select a variant to see details

Click on any variant above to view its information, images, and specifications.
